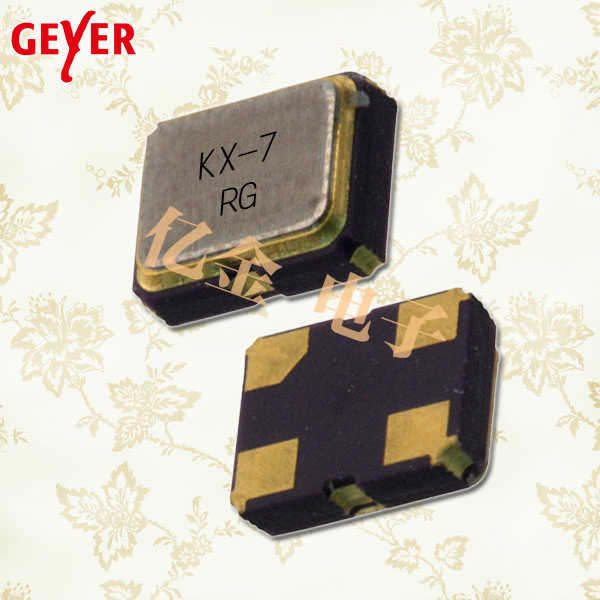

首頁歐美晶振12.88602無源諧振器,KX-7型號晶振,GEYER格耶晶振

12.88602無源諧振器,KX-7型號晶振,GEYER格耶晶振

頻率：16 MHz
尺寸：3225mm
應　用： 12.88602無源諧振器,KX-7型號晶振,GEYER格耶晶振,在溫度范圍-20℃~+70℃內,頻率溫度穩定性嚴格控制在±30ppm以內,可有效抵御高低溫波動對時鐘信號的干擾,確保設備在惡劣環境下仍保持精準時序.

12.88602無源諧振器,KX-7型號晶振,GEYER格耶晶振
憑借12.88602的精準頻率,高穩定性及寬溫特性,KX-7型號無源諧振器廣泛應用于需低頻時鐘信號的電子設備.在工業控制領域,可作為PLC(可編程邏輯控制器),變頻器,傳感器模塊的時序核心,為數據采集,邏輯運算提供穩定時鐘,保障工業生產流程的精準同步,在消費電子領域,適配智能家電(如洗衣機,空調的控制板),便攜式醫療設備(如血糖儀,血壓計),低功耗與高精度特性可滿足設備對續航與測量精度的雙重需求,在汽車電子領域(車規級衍生型號),用于車載空調控制器,車窗升降系統的計時單元,抗振動,寬溫設計能抵御車輛行駛中的機械沖擊與溫度變化,此外,還可應用于物聯網終端(如智能水表,燃氣表),安防設備(如門禁控制器),為設備的定時數據上傳,身份識別時序提供可靠時鐘支撐,同時簡化電路設計(無需外部驅動電路),降低設備研發與生產成本.

12.88602無源諧振器,KX-7型號晶振,GEYER格耶晶振

原廠型號 Originalmodel：	12.88602	品牌brand：	GEYE
型號名稱 Modelname：	KX-7高精度晶振	Size/Dimension尺寸	3225mm
Type系列：	MHz Crystal	高度PackageHeight：	0.8mm
頻率 frequency：	16MHz	溫度OperatingTemperature	-20~+70℃
Frequency Stability頻率穩定度	-	腳位Termination：	4Pad
frequencytolerance頻率容差	30PP	封裝類型PackageType：	4-smd
Loadcapacitance 負載電容	12pF	最小包裝數MPQ：	3000

12.88602無源諧振器,KX-7型號晶振,GEYER格耶晶振

12.87000	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	12.5 pF
12.87001	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	9 pF
12.87002	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	7 pF
12.87034	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	4 pF
12.87080	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF
12.87081	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF
12.87083	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF
12.87086	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF
12.87090	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF
12.87095	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF
12.87105	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF
12.87107	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF
12.87109	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12 pF
12.87110	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF
12.87111	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF
12.87112	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF
12.87113	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF
12.87114	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF
12.87115	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF
12.87116	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF
12.87118	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF
12.87119	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF
12.87120	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF
12.87121	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF
12.87123	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF
12.87126	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF
12.87127	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF
12.87128	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF
12.87129	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF
12.87130	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF
12.87131	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF
12.87132	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF
12.87133	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF
12.87134	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF
12.87135	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF
12.87136	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF
12.87137	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	9 pF
12.87138	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF
12.87139	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF
12.87143	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF
12.87144	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF
12.87145	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF
12.87146	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF
12.87147	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF
12.87148	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF
12.87149	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF
12.87150	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF
12.87151	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF
12.87152	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF
12.87153	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF
12.87155	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF
12.87157	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF
12.87158	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF
12.87159	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF
12.87160	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF
12.87161	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF
12.87163	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	7 pF
12.87164	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF
12.87165	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF
12.87166	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF
