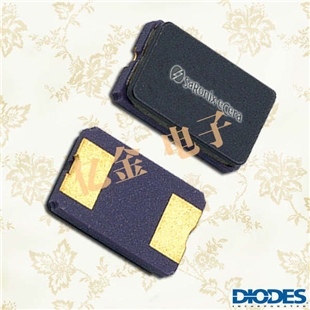

首頁進口晶振百利通亞陶晶振F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES

頻率：25mMHz
尺寸：6035
應　用： F62500047|25MHz|20PPM|-40~85℃|18PF|6035|DIODES，臺灣Diodes晶振，緊密的公差和穩定性堅固的結構和優秀的機械抗沖擊非常緊湊的SMD包可在膠帶和卷；12mm膠帶，1000單位FX：無pb和RoHS/綠色兼容F6：RoHS兼容。2墊F6系...

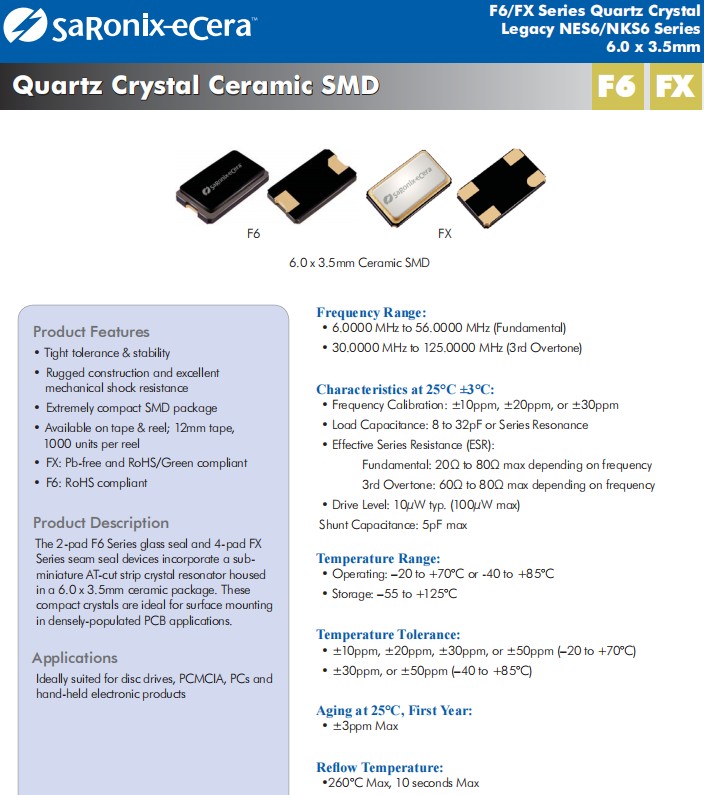

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES，臺灣Diodes晶振，緊密的公差和穩定性堅固的結構和優秀的機械抗沖擊非常緊湊的SMD包可在膠帶和卷；12mm膠帶，1000單位FX：無pb和RoHS/綠色兼容F6： RoHS兼容。2墊F6系列玻璃密封和4墊FX系列接縫密封裝置采用了封裝在6.0 x 3.5mm的封裝范圍內。這些協議可用于在密集的PCB應用中的表面安裝。非常適合磁盤驅動器，PCMCIA，個人電腦和手持電子產品

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES

Parameters

Minimum

Typical

Maximum

Units

頻率

6.000

56.000

MHz

操作模式

Fundamental

工作溫度

- 10

+50

ºC

儲存溫度

--40

+85

ºC

頻率容差 @+25°C

--50

+50

ppm

工作溫度下的頻率穩定性 ( ref. to +25°C)

--50

+50

ppm

并聯電容 (C0)

負載電容 (CL)

8 to 32

驅動電平

100

µW

老化

--5

ppm

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES

DIODES原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	工作溫度
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	±50ppm	8pF	-40°C ~ 125°C
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	±50ppm	8pF	-40°C ~ 125°C
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	±50ppm	8pF	-40°C ~ 125°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
F61200046	Diodes晶振	F6	12MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F61200046	Diodes晶振	F6	12MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F61200046	Diodes晶振	F6	12MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F80800016	Diodes晶振	F8	8MHz	±50ppm	±50ppm	8pF	-20°C ~ 70°C
F80800016	Diodes晶振	F8	8MHz	±50ppm	±50ppm	8pF	-20°C ~ 70°C
F80800016	Diodes晶振	F8	8MHz	±50ppm	±50ppm	8pF	-20°C ~ 70°C
F90800021	Diodes晶振	F9	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F90800021	Diodes晶振	F9	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F90800021	Diodes晶振	F9	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F91200084	Diodes晶振	F9	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
F91200084	Diodes晶振	F9	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
F91200084	Diodes晶振	F9	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
F62500047	Diodes晶振	F6	25MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F62500047	Diodes晶振	F6	25MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F62500047	Diodes晶振	F6	25MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F60800010	Diodes晶振	F6	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F60800010	Diodes晶振	F6	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F60800010	Diodes晶振	F6	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F62400017	Diodes晶振	F6	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
F62400017	Diodes晶振	F6	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
F62400017	Diodes晶振	F6	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
F61600023	Diodes晶振	F6	16MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F61600023	Diodes晶振	F6	16MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F61600023	Diodes晶振	F6	16MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F62700016	Diodes晶振	F6	27MHz	±50ppm	±50ppm	18pF	-40°C ~ 85°C
F62700016	Diodes晶振	F6	27MHz	±50ppm	±50ppm	18pF	-40°C ~ 85°C
F62700016	Diodes晶振	F6	27MHz	±50ppm	±50ppm	18pF	-40°C ~ 85°C
