SG-210SEBA車載晶振X1G004611A00100是汽車電子應用中的理想選擇

來源：http://www.py519.com 作者：億金電子 2022年09月28

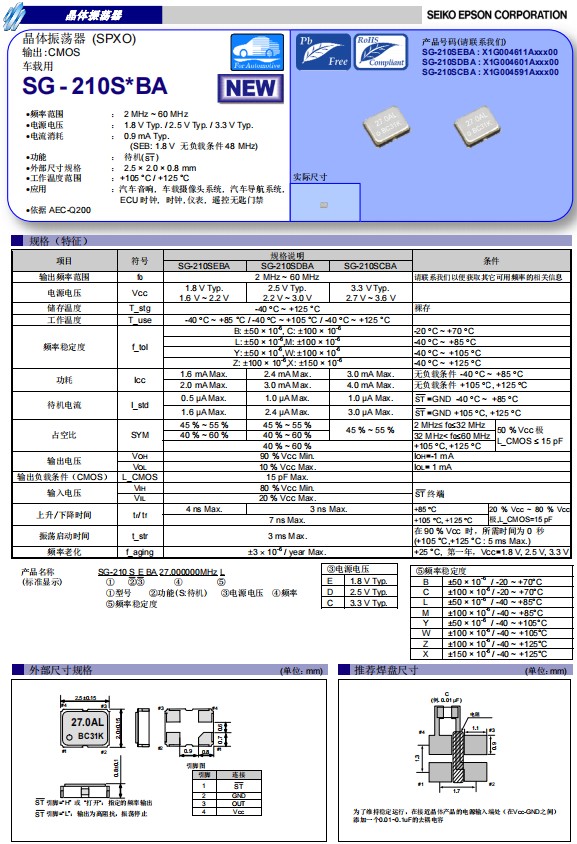

愛普生晶振推出車載電子專用晶振SG-210SEBA，是一款CMOS輸出石英晶體振蕩器(SPXO)，小體積晶振尺寸2.5x2.0mm四腳貼片晶振，有源晶振，電源電壓1.8V至3.3V，頻率范圍2MHz至60MHz，寬工作溫度可達到-40℃至+85℃/+105℃/+125℃，該產品具有超小型，輕薄型，低抖動，低功耗，耐高溫，耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。SG-210SEBA有源晶振非常適用于汽車電子應用，汽車音響控制器，車載攝像頭系統，汽車導航系統，時鐘，儀表等。是汽車電子應用中的理想選擇。
SG-210SEBA車載晶振X1G004611A00100是汽車電子應用中的理想選擇,X1G004611A03400,耐高溫晶振

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G004611A00100	SG-210SEBA	24.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A00300	SG-210SEBA	27.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 125°C
X1G004611A00400	SG-210SEBA	20.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 125°C
X1G004611A00500	SG-210SEBA	27.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A01200	SG-210SEBA	24.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A01300	SG-210SEBA	33.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A01400	SG-210SEBA	16.666600MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A01600	SG-210SEBA	14.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A01700	SG-210SEBA	37.125000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A01900	SG-210SEBA	13.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A02000	SG-210SEBA	10.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A02100	SG-210SEBA	48.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A02200	SG-210SEBA	16.660000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A02400	SG-210SEBA	14.745600MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A02500	SG-210SEBA	16.640000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A02600	SG-210SEBA	24.576000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A02700	SG-210SEBA	12.288000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C

X1G004611A02800	SG-210SEBA	25.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A03000	SG-210SEBA	48.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A03100	SG-210SEBA	25.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 125°C
X1G004611A03300	SG-210SEBA	24.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 125°C
X1G004611A03400	SG-210SEBA	20.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A03500	SG-210SEBA	41.250000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A03600	SG-210SEBA	16.640000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A03700	SG-210SEBA	16.510000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A03800	SG-210SEBA	9.600000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A04100	SG-210SEBA	16.666600MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A04200	SG-210SEBA	33.300000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A04300	SG-210SEBA	25.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 85°C
X1G004611A04400	SG-210SEBA	33.000000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C
X1G004611A04500	SG-210SEBA	49.500000MHz	2.50x2.00x0.90mm	CMOS	1.600 to 2.200V	-40 to 105°C

SG-210SEBA車載晶振X1G004611A00100是汽車電子應用中的理想選擇,X1G004611A03400,耐高溫晶振
針對各種車載電子設備對石英晶振在高溫、抗振動等方面的更高要求，愛普生可以提供全面的符合AEC-Q200/100技術標準的汽車用車規晶振。
汽車的應用場景包括導航、遠程呼叫、緊急救援、防盜跟蹤、道路救援、電話、資訊娛樂、下載應用，自動駕駛等等，為了實現人與汽車系統自由的交互，并提供實時的信息互動、支付、交通、天氣等功能，汽車對車規級晶振的依賴只會越來越強。
