首頁進口晶振XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振

XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振

頻率：16 MHz
尺寸：2.50mm x 2.00mm
應　用： XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振,該晶振遵循嚴格的車載應用標準,在設計和生產過程中充分考量車載環境的特殊性.其可承受-40℃至+125℃的寬溫工作范圍,能輕松應對汽車行駛過程中的高低溫波動.

XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振
XRCHA16M000F0A01R0是一款專為車載電子領域量身打造的無源晶振,不僅具備16MHz標準工作頻率,更將頻率精度嚴格控制在±10ppm(具體數值以官方產品規格書為準)的車載級高標準范圍內,這一精度水平可滿足車載電子系統對時鐘信號"低誤差,高同步"的核心需求.作為典型的無源器件,它無需外部獨立電源驅動,僅依靠車載網絡晶振電路中MCU(微控制單元)或專用驅動芯片提供的激勵信號,即可通過內部壓電晶體的機械振動產生穩定振蕩,進而輸出精準時鐘信號.這種特性使其能與車載電子系統中多樣化的驅動電路(如車載ECU的時鐘驅動模塊,傳感器信號處理電路)實現高效適配,無需額外設計供電回路,為車載設備提供基礎且關鍵的時鐘信號支撐,確保各電子部件的協同運轉.

XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振

原廠型號 Originalmodel：	XRCHA16M000F0A01R0	品牌brand：	Murata村田晶振
品牌brand：	村田晶振	ESR（等效串聯電阻）Resistance)	100 Ohms
型號名稱 Modelname：	XRCHA	溫度OperatingTemperature	-40°C~125°C
Type系列：	MHz Crystal	腳位Termination：	2pad
頻率 frequency：	16 MHz	封裝類型PackageType：	2-SMD
FrequencyStability頻率穩定度	±100ppm	高度PackageHeight：	0.80mm
frequencytolerance頻率容差	±100ppm	最小包裝數MPQ：	3000
Loadcapacitance 負載電容	8pF	包裝Packaging：	TapeandReel

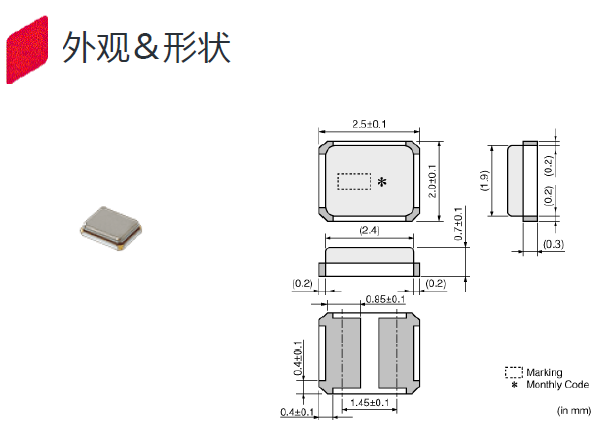

Size/Dimension尺寸	2.50mm x 2.00mm	安裝方式MountingStyle：	SurfaceMount

XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振

XRCGB25M000F3M00R0	Murata村田晶振	XRCGB	25 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M00R0	Murata村田晶振	XRCGB	27.12 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F3M00R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2P00R0	Murata村田晶振	XRCGB	24 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H01R0	Murata村田晶振	-	32 MHz	±10ppm	±10ppm	8pF	60 Ohms
XRCGB32M000F1H00R0	Murata村田晶振	XRCGB	32 MHz	±10ppm	±10ppm	6pF	60 Ohms
XRCGB25M000F3A00R0	Murata村田晶振	XRCGB	25 MHz	±35ppm	±35ppm	6pF	100 Ohms
XRCGB24M000F0L00R0	Murata村田晶振	XRCGB	24 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB48M000F4M00R0	Murata村田晶振	XRCGB	48 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB24M000F3N00R0	Murata村田晶振	XRCGB	24 MHz	±30ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M10R0	Murata村田晶振	XRCGB	27.12 MHz	±40ppm	±30ppm	10pF	80 Ohms
XRCGB25M000F3M18R0	Murata村田晶振	-	25 MHz	±40ppm	±30ppm	12pF	80 Ohms
XRCGB32M000F2P01R0	Murata村田晶振	-	32 MHz	±20ppm	±20ppm	8pF	100 Ohms
XRCGB32M000F2P00R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB25M000F2P02R0	Murata村田晶振	-	25 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB27M120F2P00R0	Murata村田晶振	XRCGB	27.12 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB25M000F2P00R0	Murata村田晶振	XRCGB	25 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB24M000F2P01R0	Murata村田晶振	-	24 MHz	±20ppm	±20ppm	8pF	150 Ohms
XRCGB27M120F3M13R0	Murata村田晶振	-	27.12 MHz	±40ppm	±30ppm	10pF	60 Ohms
XRCGB32M000F2P2CR0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	8pF	70 Ohms
XRCGB32M000FBH50R0	Murata村田晶振	-	32 MHz	±10ppm	±15ppm	10pF	60 Ohms
XRCGB24M000F2P91R0	Murata村田晶振	XRCGB	24 MHz	±20ppm	±20ppm	8pF	60 Ohms
XRCGB16M000FXN00R0	Murata村田晶振	-	16 MHz	±40ppm	±40ppm	6pF	200 Ohms
XRCGB32M000F1H02R0	Murata村田晶振	-	32 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB32M000F1H19R0	Murata村田晶振	-	32 MHz	±10ppm	±10ppm	6pF	50 Ohms
XRCGB40M000F5A00R0	Murata村田晶振	-	40 MHz	±65ppm	±50ppm	6pF	70 Ohms
XRCGB24M000F3A00R0	Murata村田晶振	XRCGB	24 MHz	±35ppm	±30ppm	6pF	120 Ohms
XRCGB27M120F3A00R0	Murata村田晶振	XRCGB	27.12 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGB25M000F3A01R0	Murata村田晶振	XRCGB	25 MHz	±35ppm	±30ppm	8pF	100 Ohms
XRCGB48M000F5A00R0	Murata村田晶振	-	48 MHz	±65ppm	±50ppm	6pF	60 Ohms
XRCGE25M000FBA1AR0	Murata村田晶振	XRCFD	25 MHz	±35ppm	±15ppm	6pF	100 Ohms
XRCHA20M000F0A01R0	Murata村田晶振	XRCHA	20 MHz	±100ppm	±100ppm	8pF	80 Ohms
XRCGB27M120F0L00R0	Murata村田晶振	-	27.12 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB32M000F0L00R0	Murata村田晶振	-	32 MHz	±50ppm	±100ppm	6pF	100 Ohms
XRCGB24M000FAN00R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±25ppm	6pF	150 Ohms
XRCGB38M400F4M00R0	Murata村田晶振	-	38.4 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB50M000F4M00R0	Murata村田晶振	-	50 MHz	±40ppm	±45ppm	6pF	65 Ohms
XRCGB32M000F3M00R0	Murata村田晶振	-	32 MHz	±40ppm	±30ppm	6pF	100 Ohms
XRCGB24M000F3M13R0	Murata村田晶振	XRCGB	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P02R0	Murata村田晶振	-	32 MHz	±20ppm	±20ppm	10pF	100 Ohms
XRCGB30M000F2P00R0	Murata村田晶振	XRCGB	30 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F2P02R0	Murata村田晶振	-	27.12 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB32M000F2P26R0	Murata村田晶振	-	32 MHz	±20ppm	±20ppm	5pF	70 Ohms
XRCGB31M250F2P00R0	Murata村田晶振	XRCGB	31.25 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F3G00R0	Murata村田晶振	-	27.12 MHz	±50ppm	±30ppm	6pF	150 Ohms
XRCGB16M000FXN22R0	Murata村田晶振	XRCGB	16 MHz	±40ppm	±40ppm	8pF	200 Ohms
XRCGB27M600F2C00R0	Murata村田晶振	-	27.6 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCGB24M000F1H01R0	Murata村田晶振	-	24 MHz	±10ppm	±10ppm	8pF	80 Ohms
XRCGB26M000F1H02R0	Murata村田晶振	-	26 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB24M000F1H70R0	Murata村田晶振	-	24 MHz	±20ppm	±10ppm	6pF	80 Ohms
XRCGB32M000F1H83R0	Murata村田晶振	-	32 MHz	±15ppm	±10ppm	9pF	60 Ohms
XRCGE27M000FBA1AR0	Murata村田晶振	XRCGE	27 MHz	±35ppm	±15ppm	6pF	80 Ohms
XRCGB26M000F3A00R0	Murata村田晶振	-	26 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGE26M000FBA1BR0	Murata村田晶振	XRCGE	26 MHz	±35ppm	±15ppm	8pF	80 Ohms
XRCGE20M000F3A1AR0	Murata村田晶振	XRCFD	20 MHz	±45ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2A01R0	Murata村田晶振	XRCGB	24 MHz	±35ppm	±20ppm	8pF	120 Ohms
XRCGB27M120F3P00R0	Murata村田晶振	-	27.12 MHz	±20ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P55R0	Murata村田晶振	XRCGB	32 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCPB26M000F2P00R0	Murata村田晶振	XRCPB	26 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H18R0	Murata村田晶振	XRCFD	32 MHz	±15ppm	±10ppm	9pF	40 Ohms
