首頁進口晶振NX3215SA-32.768K-MU00529,USB藍牙接口晶振,NDK進口晶振

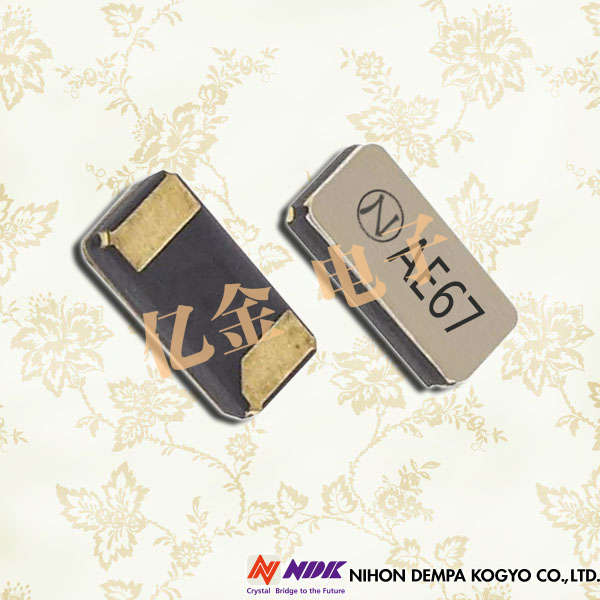

NX3215SA-32.768K-MU00529,USB藍牙接口晶振,NDK進口晶振

頻率：32.768kHz
尺寸：3215mm
應　用： NX3215SA-32.768K-MU00529,USB藍牙接口晶振,NDK進口晶振,可廣泛應用于物聯網傳感器,智能家電,醫療設備等需要低功耗,高精度時鐘信號的場景.全方位滿足不同行業的時鐘需求,是兼具通用性與專業性的優質晶振選擇.

NX3215SA-32.768K-MU00529,USB藍牙接口晶振,NDK進口晶振
NX3215SA-32.768K-MU00529作為NDK進口晶振,專為USB藍牙接口設備設計,頻率精準鎖定32.768kHz,是藍牙模塊時鐘信號的核心來源.采用3.2mm×1.5mm超小封裝(NX3215規格),在節省PCB板空間的同時,可穩定輸出低功耗時鐘信號,完美匹配藍牙耳機,藍牙鍵盤,智能穿戴等小型化藍牙設備的設計需求,為數據傳輸的時序同步提供可靠保障.

NX3215SA-32.768K-MU00529,USB藍牙接口晶振,NDK進口晶振

原廠型號 Originalmodel：	NX3215SA-32.768K-MU00529	品牌brand：	NDK

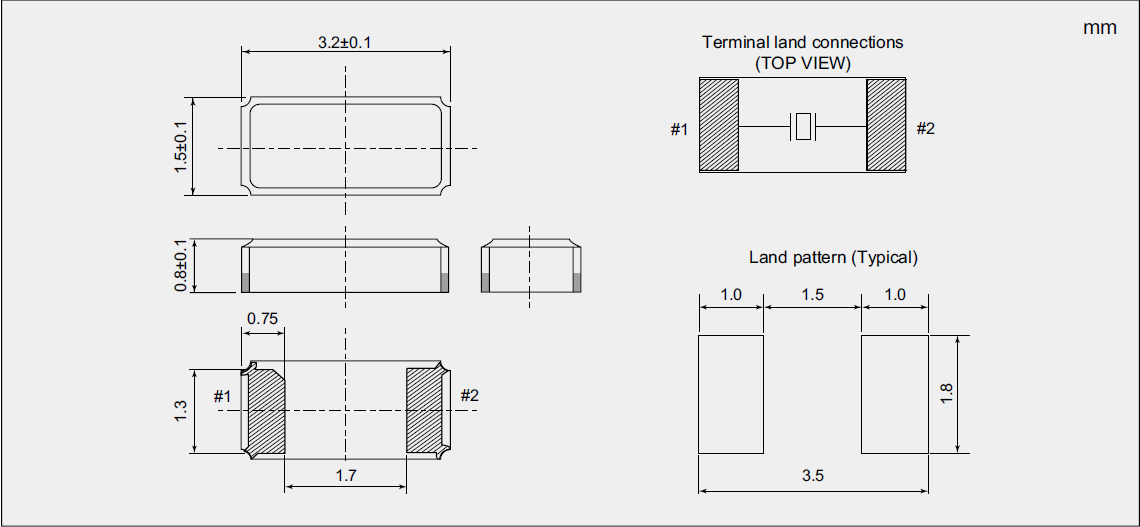

型號名稱 Modelname：	NX3215SA音叉晶振	Size/Dimension尺寸	3215mm
Type系列：	KHZ Crystal	高度PackageHeight：	0.8mm
頻率 frequency：	32.768KHZ	溫度OperatingTemperature	-40°C ~ 85°C
Frequency Stability頻率穩定度	-	腳位Termination：	2-Pad
frequencytolerance頻率容差	±30PPM	封裝類型PackageType：	2-smd
Loadcapacitance 負載電容	7pF	最小包裝數MPQ：	3000

NX3215SA-32.768K-MU00529,USB藍牙接口晶振,NDK進口晶振

NX3215SA-32.768K-MU00529,USB藍牙接口晶振,NDK進口晶振

NZ1612SH	12MHZ	NSC5152A	NZ1612SH-12.000MHZ-NSC5152A	1.6x1.2
NZ1612SH	12.288MHZ	NSC5152A	NZ1612SH-12.288MHZ-NSC5152A	1.6x1.2
NZ1612SH	13MHZ	NSC5152A	NZ1612SH-13.000MHZ-NSC5152A	1.6x1.2
NZ1612SH	16MHZ	NSC5152A	NZ1612SH-16.000MHZ-NSC5152A	1.6x1.2
NZ1612SH	19.2MHZ	NSC5152A	NZ1612SH-19.200MHZ-NSC5152A	1.6x1.2
NZ1612SH	20MHZ	NSC5152A	NZ1612SH-20MHZ-NSC5152A	1.6x1.2
NZ1612SH	24MHZ	NSC5152A	NZ1612SH-24MHZ-NSC5152A	1.6x1.2
NZ1612SH	25MHZ	NSC5152A	NZ1612SH-25MHZ-NSC5152A	1.6x1.2
NZ1612SH	26MHZ	NSC5152A	NZ1612SH-26MHZ-NSC5152A	1.6x1.2
NZ1612SH	40MHZ	NSC5152A	NZ1612SH-40MHZ-NSC5152A	1.6x1.2
NZ1612SH	48MHZ	NSC5152A	NZ1612SH-48MHZ-NSC5152A	1.6x1.2
NZ1612SH	50MHZ	NSC5152A	NZ1612SH-50MHZ-NSC5152A	1.6x1.2
NZ1612SH	52MHZ	NSC5152A	NZ1612SH-52MHZ-NSC5152A	1.6x1.2
NZ1612SH	80MHZ	NSC5152A	NZ1612SH-80MHZ-NSC5152A	1.6x1.2
NZ1612SH	12MHZ	NSC5152B	NZ1612SH-12MHZ-NSC5152B	1.6x1.2
NZ1612SH	12.288MHZ	NSC5152B	NZ1612SH-12.288MHZ-NSC5152B	1.6x1.2
NZ1612SH	13MHZ	NSC5152B	NZ1612SH-13MHZ-NSC5152B	1.6x1.2
NZ1612SH	16MHZ	NSC5152B	NZ1612SH-16MHZ-NSC5152B	1.6x1.2
NZ1612SH	19.2MHZ	NSC5152B	NZ1612SH-19.2MHZ-NSC5152B	1.6x1.2
NZ1612SH	20MHZ	NSC5152B	NZ1612SH-20MHZ-NSC5152B	1.6x1.2
NZ1612SH	24MHZ	NSC5152B	NZ1612SH-24MHZ-NSC5152B	1.6x1.2
NZ1612SH	25MHZ	NSC5152B	NZ1612SH-25MHZ-NSC5152B	1.6x1.2
NZ1612SH	26MHZ	NSC5152B	NZ1612SH-26MHZ-NSC5152B	1.6x1.2
NZ1612SH	40MHZ	NSC5152B	NZ1612SH-40MHZ-NSC5152B	1.6x1.2
NZ1612SH	48MHZ	NSC5152B	NZ1612SH-48MHZ-NSC5152B	1.6x1.2
NZ1612SH	50MHZ	NSC5152B	NZ1612SH-50MHZ-NSC5152B	1.6x1.2
NZ1612SH	52MHZ	NSC5152B	NZ1612SH-52MHZ-NSC5152B	1.6x1.2
NZ1612SH	80MHZ	NSC5152B	NZ1612SH-80MHZ-NSC5152B	1.6x1.2
NZ1612SH	12MHZ	NSC5152C	NZ1612SH-12MHZ-NSC5152C	1.6x1.2
NZ1612SH	12.288MHZ	NSC5152C	NZ1612SH-12.288MHZ-NSC5152C	1.6x1.2
NZ1612SH	13MHZ	NSC5152C	NZ1612SH-13MHZ-NSC5152C	1.6x1.2
NZ1612SH	16MHZ	NSC5152C	NZ1612SH-16MHZ-NSC5152C	1.6x1.2
NZ1612SH	19.2MHZ	NSC5152C	NZ1612SH-19.2MHZ-NSC5152C	1.6x1.2
NZ1612SH	20MHZ	NSC5152C	NZ1612SH-20MHZ-NSC5152C	1.6x1.2
NZ1612SH	24MHZ	NSC5152C	NZ1612SH-24MHZ-NSC5152C	1.6x1.2
NZ1612SH	25MHZ	NSC5152C	NZ1612SH-25MHZ-NSC5152C	1.6x1.2
NZ1612SH	26MHZ	NSC5152C	NZ1612SH-26MHZ-NSC5152C	1.6x1.2
NZ1612SH	40MHZ	NSC5152C	NZ1612SH-40MHZ-NSC5152C	1.6x1.2
NZ1612SH	48MHZ	NSC5152C	NZ1612SH-48MHZ-NSC5152C	1.6x1.2
NZ1612SH	50MHZ	NSC5152C	NZ1612SH-50MHZ-NSC5152C	1.6x1.2
NZ1612SH	52MHZ	NSC5152C	NZ1612SH-52MHZ-NSC5152C	1.6x1.2
NZ1612SH	80MHZ	NSC5152C	NZ1612SH-80MHZ-NSC5152C	1.6x1.2
NZ1612SH	12MHZ	NSC5152D	NZ1612SH-12MHZ-NSC5152D	1.6x1.2
NZ1612SH	12.288MHZ	NSC5152D	NZ1612SH-12.288MHZ-NSC5152D	1.6x1.2
NZ1612SH	13MHZ	NSC5152D	NZ1612SH-13MHZ-NSC5152D	1.6x1.2
NZ1612SH	16MHZ	NSC5152D	NZ1612SH-16MHZ-NSC5152D	1.6x1.2
NZ1612SH	19.2MHZ	NSC5152D	NZ1612SH-19.2MHZ-NSC5152D	1.6x1.2
NZ1612SH	20MHZ	NSC5152D	NZ1612SH-20MHZ-NSC5152D	1.6x1.2
NZ1612SH	24MHZ	NSC5152D	NZ1612SH-24MHZ-NSC5152D	1.6x1.2
NZ1612SH	25MHZ	NSC5152D	NZ1612SH-25MHZ-NSC5152D	1.6x1.2
NZ1612SH	26MHZ	NSC5152D	NZ1612SH-26MHZ-NSC5152D	1.6x1.2
NZ1612SH	40MHZ	NSC5152D	NZ1612SH-40MHZ-NSC5152D	1.6x1.2
NZ1612SH	48MHZ	NSC5152D	NZ1612SH-48MHZ-NSC5152D	1.6x1.2
NZ1612SH	50MHZ	NSC5152D	NZ1612SH-50MHZ-NSC5152D	1.6x1.2
NZ1612SH	52MHZ	NSC5152D	NZ1612SH-52MHZ-NSC5152D	1.6x1.2
NZ1612SH	80MHZ	NSC5152D	NZ1612SH-80MHZ-NSC5152D	1.6x1.2
NZ1612SH	12MHZ	NSC5103A	NZ1612SH-12MHZ-NSC5103A	1.6x1.2
NZ1612SH	12.288MHZ	NSC5103A	NZ1612SH-12.288MHZ-NSC5103A	1.6x1.2
NZ1612SH	13MHZ	NSC5103A	NZ1612SH-13MHZ-NSC5103A	1.6x1.2
NZ1612SH	16MHZ	NSC5103A	NZ1612SH-16MHZ-NSC5103A	1.6x1.2
