首頁進口晶振泰藝晶振XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN

XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN

頻率：32MHz

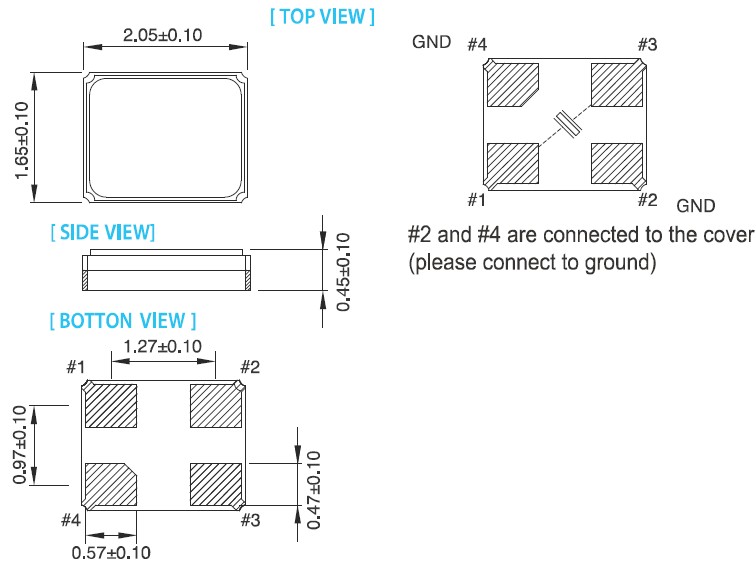

尺寸：2.05*1.65mm
應　用： XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN,臺灣泰藝石英晶振,XZ型2.0x1.6mmSMD晶體,典型的2.05x1.65x0.45mm超薄陶瓷包裝。-8mm寬的膠帶和卷軸包裝，用于自動組裝。緊密公差10ppm可用,藍牙，移動電話，...

XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN,臺灣泰藝石英晶振,XZ型2.0 x 1.6 mm SMD晶體,典型的2.05 x 1.65 x 0.45 mm超薄陶瓷包裝。- 8 mm寬的膠帶和卷軸包裝，用于自動組裝。緊密公差10 ppm可用,藍牙，移動電話，無線局域網。辦公室自動化,音頻和視頻.

XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN

參數	最小值	典型的	最大值	單位
儲存溫度	--55	-	125	℃
標稱頻率	26 , 30, 32, 40			MHz
驅動電平	-	10	200	µw
并聯電容	-	-	3.0	pF
絕緣電阻	500 M?@ DC100V	-	-
老化	±1.0 to ±3.0			ppm / year

XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN

TAITIEN原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
XZLEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	6pF
XZLEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	6pF
XZLEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	6pF
XZLEECNANF-50.000000	Taitien	XZ	50MHz	±30ppm	±30ppm	6pF
