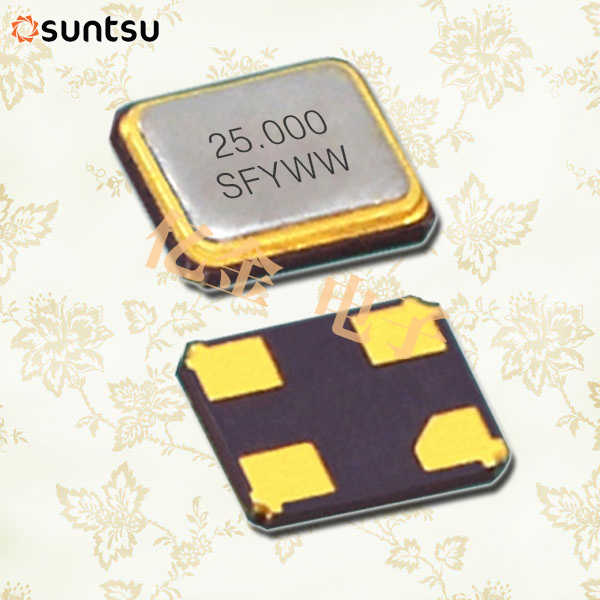

首頁歐美晶振 SUNTSU晶振SXT21410AA16-22.1184M,SUNTSU,22.1184MHz,2016,10PF,50PPM

SXT21410AA16-22.1184M,SUNTSU,22.1184MHz,2016,10PF,50PPM

頻率：22.1184MHz
尺寸：2016
應　用： SXT21410AA16-22.1184M,SUNTSU,22.1184MHz,2016,10PF,50PPM，石英貼片晶振，10ppm/10ppm（公差/穩定性），可用的超微型包裝切割，基本磁帶和卷軸，藍牙，無線局域網，高密度應用程序。辦公自動化,視聽,藍牙,小型通信設...

SXT21410AA16-22.1184M,SUNTSU,22.1184MHz,2016,10PF,50PPM，石英貼片晶振，±10ppm/±10ppm（公差/穩定性），可用的超微型包裝切割，基本磁帶和卷軸，藍牙，無線局域網，高密度應用程序。辦公自動化,視聽,藍牙,小型通信設備,SSD,USB.

SXT21410AA16-22.1184M,SUNTSU,22.1184MHz,2016,10PF,50PPM

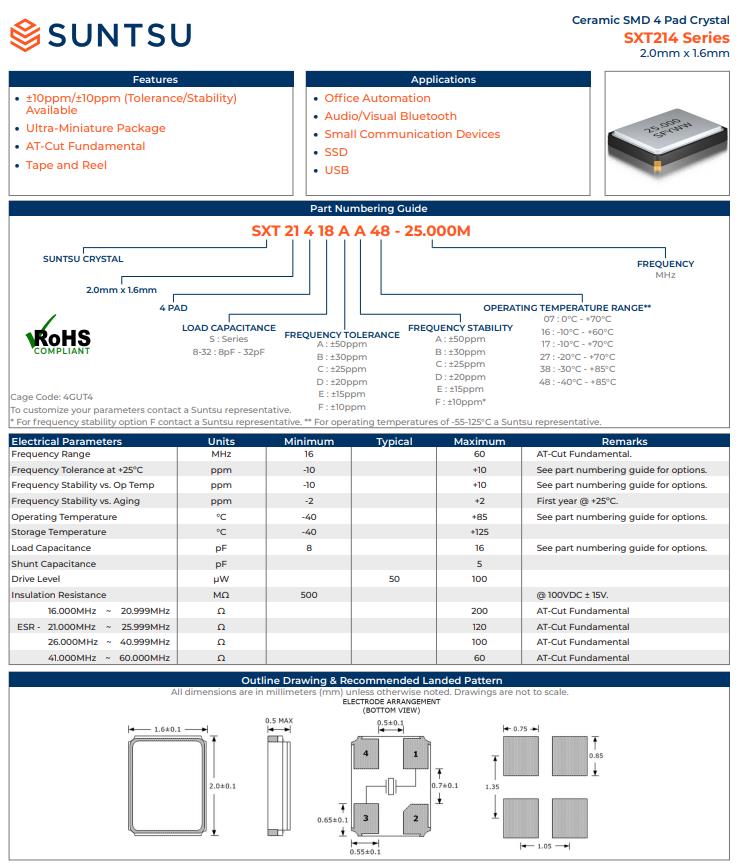

電氣參數	單位	最小值	典型的	最大值	注意
頻率范圍	MHz	16		60	AT-Cut Fundamental.
頻率容差 +25ºC	ppm	--10		+10	See part numbering guide for options.
溫度下的頻率偏差度	ppm	--10		+10	See part numbering guide for options.
老化	ppm	--2		+2	First year @ +25ºC.
工作溫度	°C	--40		+85	See part numbering guide for options.
儲存溫度	°C	--40		+125
負載電容	pF	8		16	See part numbering guide for options.
并聯電容	pF			5
驅動電平	µW		50	100
絕緣電阻	M?	500			@ 100VDC ± 15V.
16.000MHz ~20.999MHz	?			200	AT-Cut Fundamental
ESR - 21.000MHz ~ 25.999MHz	?			120	AT-Cut Fundamental
26.000MHz ~ 40.999MHz	?			100	AT-Cut Fundamental
41.000MHz ~ 60.000MHz	?			60	AT-Cut Fundamental

SXT21410AA16-22.1184M,SUNTSU,22.1184MHz,2016,10PF,50PPM

SUNTSU原廠編碼	封裝尺寸	負載電荷	頻率偏差度	頻率
SXT21410AA07-16.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	16.000M
SXT21410AA07-16.384M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	16.384M
SXT21410AA07-18.432M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	18.432M
SXT21410AA07-20.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	20.000M
SXT21410AA07-22.1184M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	22.1184M
SXT21410AA07-24.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	24.000M
SXT21410AA07-24.576M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	24.576M
SXT21410AA07-25.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	25.000M
SXT21410AA07-26.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	26.000M
SXT21410AA07-27.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	27.000M
SXT21410AA07-27.120M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	27.120M
SXT21410AA07-30.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	30.000M
SXT21410AA07-32.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	32.000M
SXT21410AA07-37.400M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	37.400M
SXT21410AA07-38.400M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	38.400M
SXT21410AA07-40.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	40.000M
SXT21410AA07-48.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	48.000M
SXT21410AA07-50.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	50.000M
SXT21410AA07-52.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	52.000M
SXT21410AA16-16.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	16.000M
SXT21410AA16-16.384M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	16.384M
SXT21410AA16-18.432M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	18.432M
SXT21410AA16-20.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	20.000M
SXT21410AA16-22.1184M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	22.1184M
SXT21410AA16-24.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	24.000M
SXT21410AA16-24.576M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	24.576M
SXT21410AA16-25.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	25.000M
SXT21410AA16-26.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	26.000M
SXT21410AA16-27.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	27.000M
SXT21410AA16-27.120M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	27.120M
SXT21410AA16-30.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	30.000M
SXT21410AA16-32.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	32.000M
SXT21410AA16-37.400M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	37.400M
SXT21410AA16-38.400M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	38.400M
SXT21410AA16-40.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	40.000M
SXT21410AA16-48.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	48.000M
SXT21410AA16-50.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	50.000M
SXT21410AA16-52.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	52.000M
SXT21410AA17-16.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	16.000M
SXT21410AA17-16.384M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	16.384M
SXT21410AA17-18.432M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	18.432M
SXT21410AA17-20.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	20.000M
SXT21410AA17-22.1184M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	22.1184M
SXT21410AA17-24.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	24.000M
SXT21410AA17-24.576M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	24.576M
SXT21410AA17-25.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	25.000M
SXT21410AA17-26.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	26.000M
SXT21410AA17-27.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	27.000M
SXT21410AA17-27.120M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	27.120M
SXT21410AA17-30.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	30.000M
SXT21410AA17-32.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	32.000M
SXT21410AA17-37.400M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	37.400M
SXT21410AA17-38.400M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	38.400M
SXT21410AA17-40.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	40.000M
SXT21410AA17-48.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	48.000M
SXT21410AA17-50.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	50.000M
SXT21410AA17-52.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	52.000M
SXT21410AA27-16.000M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	16.000M
SXT21410AA27-16.384M	2.0X1.6 SMD (4 PAD) CRYSTAL	10pF	±50ppm	16.384M
