更多>>FX2710008 DIODES 27.12MHz 20PPM 6035 16PF -20~70℃
- 頻率：27.12MHz
- 尺寸：6035
- 應 用： F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES，臺灣Diodes晶振，緊密的公差和穩定性堅固的結構和優秀的機械抗沖擊非常緊湊的SMD包可在膠帶和卷；12mm膠帶，1000單位FX：無pb和RoHS/綠色兼容F6：RoHS兼容。2墊F6系...
-
.jpg)

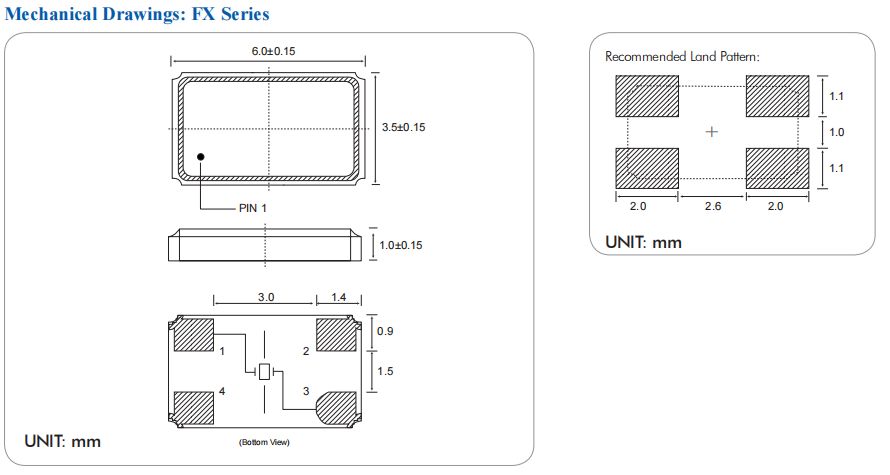

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES，臺灣Diodes晶振，緊密的公差和穩定性堅固的結構和優秀的機械抗沖擊非常緊湊的SMD包可在膠帶和卷；12mm膠帶，1000單位FX：無pb和RoHS/綠色兼容F6： RoHS兼容。2墊F6系列玻璃密封和4墊FX系列接縫密封裝置采用了封裝在6.0 x 3.5mm的封裝范圍內。這些協議可用于在密集的PCB應用中的表面安裝。非常適合磁盤驅動器，PCMCIA，個人電腦和手持電子產品

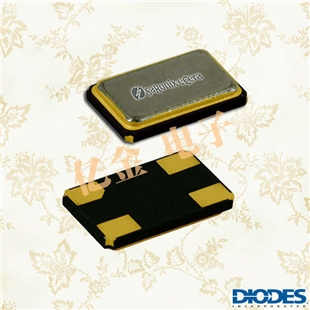

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES
| Parameters | Minimum | Typical | Maximum | Units | |||||||||
| 頻率 | 6.000 | 56.000 | MHz | ||||||||||
| 操作模式 | Fundamental | ||||||||||||
| 工作溫度 | - 10 | +50 | ºC | ||||||||||
| 儲存溫度 | --40 | +85 | ºC | ||||||||||
| 頻率容差 @+25°C | --50 | +50 | ppm | ||||||||||
| 工作溫度下的頻率穩定性 ( ref. to +25°C) | --50 | +50 | ppm | ||||||||||
| 并聯電容 (C0) | 5 | pF | |||||||||||
| 負載電容 (CL) |
8 to 32
|
pF | |||||||||||
| 驅動電平 | 10 | 100 | µW | ||||||||||
| 老化 | --5 | +5 | ppm | ||||||||||
.jpg)
F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES
X，6035.JPG)
| Diodes零件編號 | 制造商 | 系列 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 |
| F62500047 | Diodes晶振 | F6 | 25 MHz | ±30ppm | ±20ppm | 18pF |
| F62700016 | Diodes晶振 | F6 | 27 MHz | ±50ppm | ±50ppm | 18pF |
| FX0800015 | Diodes晶振 | FX | 8 MHz | ±20ppm | ±20ppm | 18pF |
| FX1200081 | Diodes晶振 | FX | 12 MHz | ±20ppm | ±20ppm | 18pF |
| FX1200001 | Diodes晶振 | FX | 12 MHz | ±10ppm | ±10ppm | 12pF |
| FX1220011 | Diodes晶振 | FX | 12.288 MHz | ±30ppm | ±50ppm | 20pF |
| FX1430025 | Diodes晶振 | FX | 14.318 MHz | ±30ppm | ±30ppm | 18pF |
| FX1430027 | Diodes晶振 | FX | 14.31818 MHz | ±30ppm | ±30ppm | 18pF |
| FX1600002 | Diodes晶振 | FX | - | - | - | - |
| FX1600020 | Diodes晶振 | FX | - | - | - | - |
| FX1600052 | Diodes晶振 | FX | 16 MHz | ±20ppm | ±20ppm | 18pF |
| FX1840027 | Diodes晶振 | FX | 18.432 MHz | ±30ppm | ±30ppm | 20pF |
| FX1940008 | Diodes晶振 | FX | 19.44 MHz | ±50ppm | ±50ppm | 13pF |
| FX1960009 | Diodes晶振 | FX | 19.6608 MHz | ±30ppm | ±30ppm | 12pF |
| FX2000012 | Diodes晶振 | FX | - | - | - | - |
| FX2000045 | Diodes晶振 | FX | - | - | - | - |
| FX2000060 | Diodes晶振 | FX | 20 MHz | ±20ppm | ±10ppm | 18pF |
| FX2210007 | Diodes晶振 | FX | 22.1184 MHz | ±30ppm | ±30ppm | 20pF |
| FX2400018 | Diodes晶振 | FX | - | - | - | - |
| FX2400019 | Diodes晶振 | FX | - | - | - | - |
| FX2400026 | Diodes晶振 | FX | - | - | - | - |
| FX2400029 | Diodes晶振 | FX | 24 MHz | ±30ppm | ±30ppm | 18pF |
| FX2500059 | Diodes晶振 | FX | 25 MHz | ±20ppm | ±20ppm | 18pF |
| FX2500061 | Diodes晶振 | FX | 25 MHz | ±20ppm | ±20ppm | 18pF |
| FX2500063 | Diodes晶振 | FX | 25.000625 MHz | ±20ppm | ±20ppm | 18pF |
| FX2500068Z | Diodes晶振 | FX | 25 MHz | ±20ppm | ±15ppm | 18pF |
| FX2700005 | Diodes晶振 | FX | - | - | - | - |
| FX2700053 | Diodes晶振 | FX | - | - | - | - |
| FX2710008 | Diodes晶振 | FX | 27.12 MHz | ±20ppm | ±20ppm | 16pF |
| FX4000023 | Diodes晶振 | FX | - | - | - | - |
| FX1000006 | Diodes晶振 | FX | - | - | - | - |
| FX1020008 | Diodes晶振 | FX | 10.24 MHz | ±30ppm | ±30ppm | 20pF |
| FX1100015 | Diodes晶振 | FX | 11.059 MHz | ±30ppm | ±30ppm | 20pF |
| FX0800005 | Diodes晶振 | FX | - | - | - | - |
| FX0800016 | Diodes晶振 | FX | - | - | - | - |
| FX0800018 | Diodes晶振 | FX | 8 MHz | ±20ppm | ±20ppm | 18pF |
| FX6400001 | Diodes晶振 | FX | - | - | - | - |
| F60800010 | Diodes晶振 | F6 | 8 MHz | ±30ppm | ±20ppm | 18pF |
| F61200046 | Diodes晶振 | F6 | 12 MHz | ±30ppm | ±20ppm | 18pF |
| F61600023 | Diodes晶振 | F6 | 16 MHz | ±30ppm | ±20ppm | 18pF |
| F62400017 | Diodes晶振 | F6 | 24 MHz | ±30ppm | ±30ppm | 18pF |
| F60800008 | Diodes晶振 | F6 | 8 MHz | ±30ppm | ±30ppm | 18pF |
| F61350007 | Diodes晶振 | F6 | 13.56 MHz | ±30ppm | ±20ppm | 18pF |
| F60800011 | Diodes晶振 | F6 | 8 MHz | ±30ppm | ±30ppm | 20pF |
| F61200041 | Diodes晶振 | F6 | 12 MHz | ±20ppm | ±20ppm | 20pF |
| F62500053 | Diodes晶振 | F6 | 25 MHz | ±30ppm | ±30ppm | 10pF |
.jpg)
.jpg)
