更多>>DIODES,FP2650003,26.5625MHz,15PF,7050,-40~85℃
- 頻率：26.5625MHz
- 尺寸：7050
- 應 用： F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES，臺灣Diodes晶振，堅固的AT-cut晶體結構非常緊湊的SMD包可在磁帶和卷軸；16mm磁帶，每卷1000單位FP：無鉛和RoHS/綠色兼容，4墊FP系列接縫密封裝置采用亞切割帶晶體，...
-
-
.jpg)

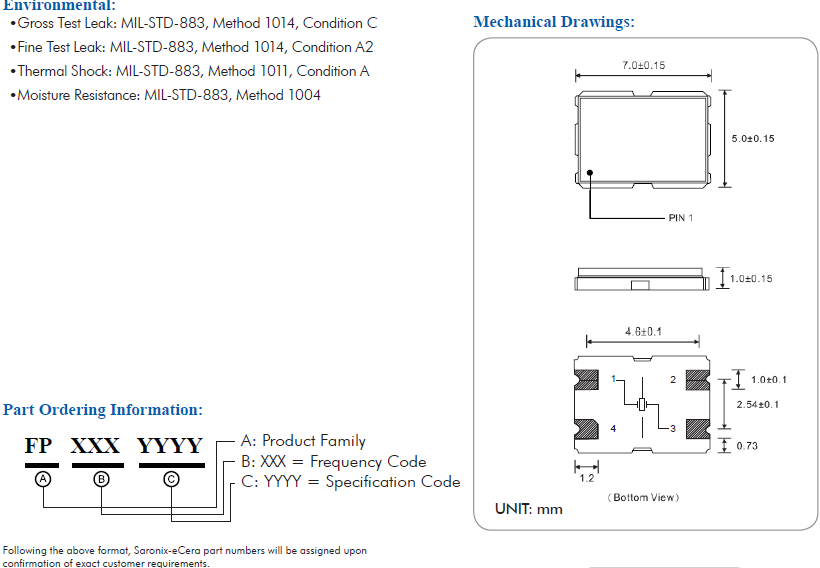

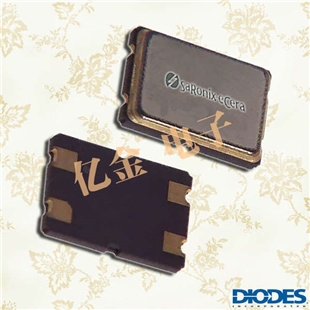

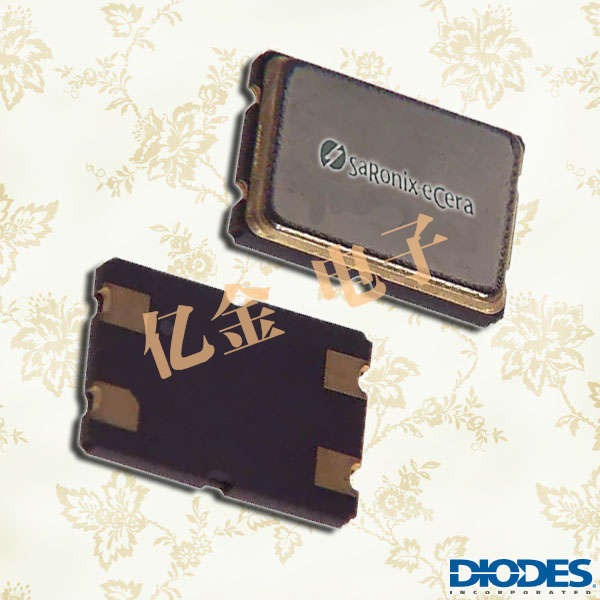

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES，臺灣Diodes晶振，堅固的AT-cut晶體結構非常緊湊的SMD包可在磁帶和卷軸；16mm磁帶，每卷1000單位FP：無鉛和RoHS /綠色兼容，4墊FP系列接縫密封裝置采用亞切割帶晶體，封裝在7.0 x 5.0mm的范圍內。這些協議可用于在密集的PCB應用中的表面安裝。非常適合磁盤驅動器，PCMCIA，個人電腦和手持式產品。
F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES

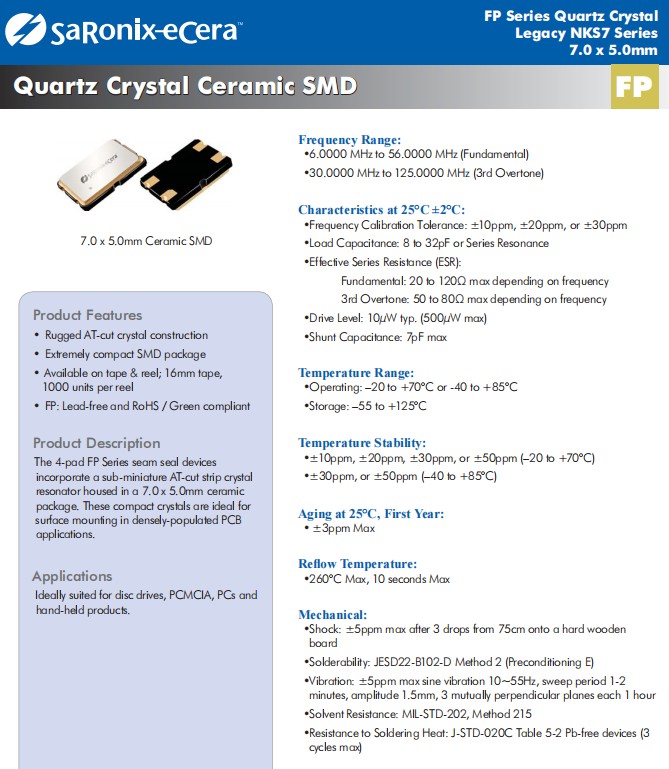

| Parameters | Minimum | Typical | Maximum | Units | |||||||||
| 頻率 | 6.000 | 56.000 | MHz | ||||||||||
| 操作模式 | Fundamental | ||||||||||||
| 工作溫度 | - 10 | +50 | ºC | ||||||||||
| 儲存溫度 | --40 | +85 | ºC | ||||||||||
| 頻率容差 @+25°C | --50 | +50 | ppm | ||||||||||
| 工作溫度下的頻率穩定性 ( ref. to +25°C) | --50 | +50 | ppm | ||||||||||
| 并聯電容 (C0) | 5 | pF | |||||||||||
| 負載電容 (CL) |
8 to 32
|
pF | |||||||||||
| 驅動電平 | 10 | 100 | µW | ||||||||||
| 老化 | --5 | +5 | ppm | ||||||||||
.jpg)
F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES
| Diodes零件編號 | 制造商 | 系列 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 |
| FP0800018 | Diodes晶振 | FP | 8 MHz | ±50ppm | ±50ppm | 18pF |
| FP0800056Z | Diodes晶振 | FP | 8 MHz | ±30ppm | ±30ppm | 18pF |
| FP0600009 | Diodes晶振 | FP | 6 MHz | - | - | - |
| FP2500070 | Diodes晶振 | FP | 25 MHz | ±10ppm | ±10ppm | 10pF |
| FP1070001 | Diodes晶振 | FP | 10.779375 MHz | ±10ppm | ±10ppm | 12pF |
| FP1200039 | Diodes晶振 | FP | 12 MHz | ±50ppm | ±30ppm | 18pF |
| FP1200040 | Diodes晶振 | FP | 12 MHz | ±30ppm | ±30ppm | 20pF |
| FP1200042 | Diodes晶振 | FP | 12 MHz | ±50ppm | ±50ppm | 22pF |
| FP2500053 | Diodes晶振 | FP | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FP2500054 | Diodes晶振 | FP | 25 MHz | ±30ppm | ±30ppm | 18pF |
| FP2500060 | Diodes晶振 | FP | 25.001875 MHz | ±15ppm | ±10ppm | 12pF |
| FP2500068 | Diodes晶振 | FP | 25 MHz | ±20ppm | ±20ppm | 20pF |
| FP2650002 | Diodes晶振 | FP | 26.5625 MHz | ±30ppm | ±30ppm | 10pF |
| FP2650003 | Diodes晶振 | FP | 26.5625 MHz | ±30ppm | ±30ppm | 15pF |
| FP3000013 | Diodes晶振 | FP | 30 MHz | ±20ppm | ±20ppm | 20pF |
| FP0600026 | Diodes晶振 | FP | 6 MHz | ±50ppm | ±30ppm | 20pF |
| FP0600027 | Diodes晶振 | FP | 6 MHz | ±30ppm | ±20ppm | 18pF |
| FP0600035 | Diodes晶振 | FP | 6 MHz | ±30ppm | ±30ppm | 20pF |
| FP0600038 | Diodes晶振 | FP | 6 MHz | ±30ppm | ±30ppm | 16pF |
| FP0600039 | Diodes晶振 | FP | 6 MHz | ±50ppm | ±20ppm | 18pF |
| FP0600040 | Diodes晶振 | FP | 6 MHz | ±50ppm | ±30ppm | 12pF |
| FP0600041 | Diodes晶振 | FP | 6 MHz | ±30ppm | ±30ppm | 12pF |
| FP0730001 | Diodes晶振 | FP | - | - | - | - |
| FP0730013 | Diodes晶振 | FP | 7.3728 MHz | ±50ppm | ±50ppm | 20pF |
| FP0730016 | Diodes晶振 | FP | 7.3728 MHz | ±30ppm | ±30ppm | 20pF |
| FP0800013 | Diodes晶振 | FP | - | - | - | - |
| FP0800043 | Diodes晶振 | FP | - | - | - | - |
| FP0800046 | Diodes晶振 | FP | 8 MHz | ±15ppm | ±10ppm | 20pF |
| FP0800047 | Diodes晶振 | FP | 8 MHz | ±50ppm | ±30ppm | 18pF |
| FP0800049 | Diodes晶振 | FP | 8 MHz | ±30ppm | ±20ppm | 18pF |
| FP0810004 | Diodes晶振 | FP | - | - | - | - |
| FP0810005 | Diodes晶振 | FP | - | - | - | - |
| FP0980008 | Diodes晶振 | FP | 9.8304 MHz | ±50ppm | ±30ppm | 20pF |
| FP6400002 | Diodes晶振 | FP | 64 MHz | ±30ppm | ±30ppm | 18pF |
| FP0600044Q | Diodes晶振 | FP | 6 MHz | ±40ppm | ±10ppm | 18pF |
| FP0730017Z | Diodes晶振 | FP | 7.3728 MHz | ±30ppm | ±30ppm | 18pF |
