首頁歐美晶振微晶晶振VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators

VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators

  • 頻率：20MHz
  • 尺寸：5.0×3.2mm
  • 應　用： Micro晶振,VCXO2E壓控晶振,有源晶振,VCXO2E-V-C-20.000MHz-T3晶振,VCXO晶振,石英晶體振蕩器,5032mm晶振,四腳貼片晶振,SMD晶振,頻率20MHz,電壓3.3V,工作溫度-55~125°C,頻率容差110ppm,耐高溫晶振,無鉛環保晶振,低老化...
  • RoHS RoHS2


VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators,Micro晶振,VCXO2E壓控晶振,有源晶振,VCXO2E-V-C-20.000MHz-T3晶振,VCXO晶振,石英晶體振蕩器,5032mm晶振,四腳貼片晶振,SMD晶振,頻率20MHz,電壓3.3V,工作溫度-55~125°C,頻率容差110ppm,耐高溫晶振,無鉛環保晶振,低老化晶振,地熱設備晶振,航空電子晶振,無線電通信晶振,井下和鉆井應用晶振.
VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators特點：
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•寬頻率牽引范圍APR
•非?？斓膯?/span>
•在基本模式下運行
•高抗沖擊和抗振動
•100%不含鉛，符合RoHS標準

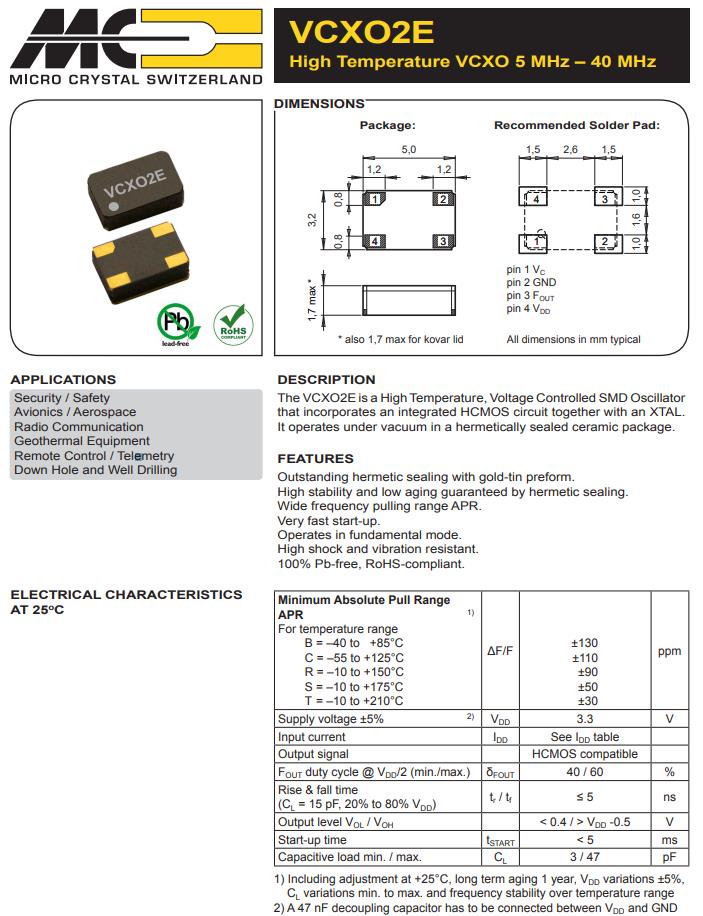

VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators規格表
Standard Frequency FL 20 MHz
Supply voltage ±5% VDD 3.3 V
Frequency tolerance ΔF/F ±110 ppm
Input Current IDD
< 5
 mA
Output signal   HCMOS  compatible
FOUT duty cycle @ VDD/2 (min./max.) δFOUT 40 / 60 %
Rise & fall time
(CL = 15 pF, 20% to 80% VDD)
 tr / tf ≤ 5 ns
Output level VOL / VOH

< 0.4 / > VDD -0.5
 V
Start-up time tSTART < 5 ms
Capacitive load min. / max
CL
3 / 47
 pF
Storage temperature range T_stg −65~+125 °C
Operating temperature range T_use −55~+125 °C
Shock resistance   10000 g, 0.3 ms, ½ sine
Vibration resistance   80 g / 10–2000 Hz
Lid
Ceramic Lid
(Kovar Lid on T range version)

Terminations (Option )
SnAgCu solder dipped pads (T3)

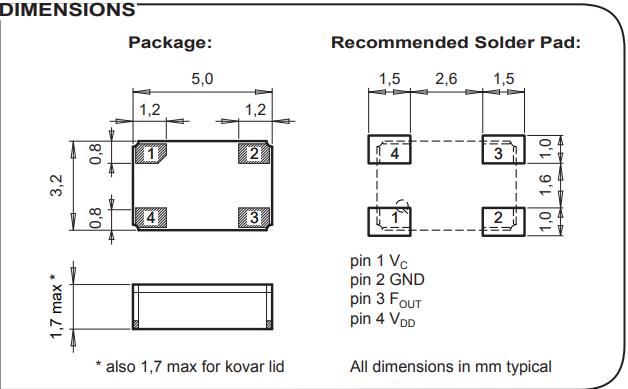

VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators尺寸圖
