首頁歐美晶振微晶晶振MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator

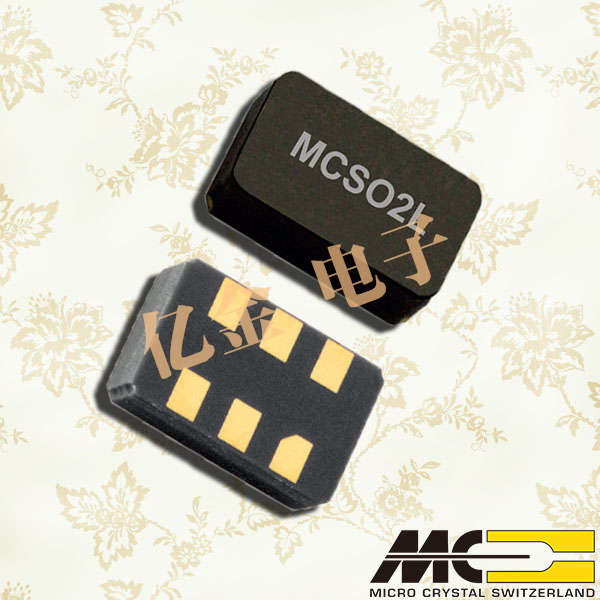

MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator

  • 頻率：100MHz
  • 尺寸：5.0×3.2mm
  • 應　用： 瑞士微晶晶振,MCSO2L有源晶振,差分晶振,MCSO2L-KVT-B-100.000MHz-E/D-T3晶振,LVDS晶振,5032mm晶振,六腳貼片晶振,石英晶體振蕩器,SMD振蕩器,頻率100MHz,電壓3.3V,工作溫度-40~85°C,頻率容差50ppm,無鉛環保晶振,耐高溫...
  • RoHS RoHS2


MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator,瑞士微晶晶振,MCSO2L有源晶振,差分晶振,MCSO2L-KVT-B-100.000MHz-E/D-T3晶振,LVDS晶振,5032mm晶振,六腳貼片晶振,石英晶體振蕩器,SMD振蕩器,頻率100MHz,電壓3.3V,工作溫度-40~85°C,頻率容差50ppm,無鉛環保晶振,耐高溫晶振,高穩定性晶振,有線通訊設備晶振,微微蜂窩晶振,測試與測量設備晶振,通用處理器晶振.
MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator特點：
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•非常快的啟動
•寬溫度范圍
•在基本模式下運行
•高抗沖擊和抗振動
•100%不含鉛，符合RoHS標準

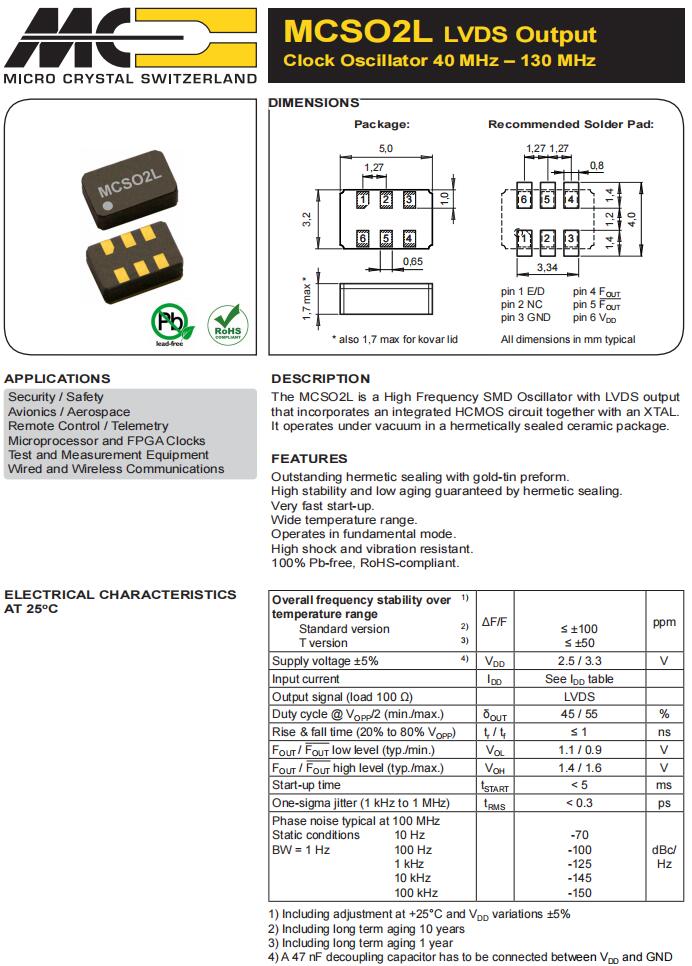

MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator規格表
Standard Frequency FL 100 MHz
Supply voltage ±5% VDD 3.3 V
Frequency tolerance ΔF/F ±50 ppm
Input Current IDD
< 15
 mA
Output signal   LVDS
FOUT duty cycle @ VDD/2 (min./max.) δFOUT 45 / 55 %
Rise & fall time,≤ 20 MHz
For F = 32.768 kHz, tr / tf ≤ 150 ns(CL = 15 pF, 20% to 80% VDD)		 tr / tf ≤ 1 ns
FOUT / FOUT low level (typ./min.)
VOL
 1.1/0.9 V
FOUT / FOUT high level (typ./max.)
VOH
 1.4/1.6 V
Start-up time tSTART < 5 ms
One-sigma jitter (1 kHz to 1 MHz)
tRMS
< 0.3
 ps
Phase noise typical at 100 MHz
Static conditions          10 Hz
BW = 1 Hz                   100 Hz
                                    1 kHz
                                    10 kHz
                                    100 kHz


-70
-100
-125
-145
-150
dBc/
Hz
Storage temperature range T_stg −65~+125 °C
Operating temperature range T_use −40~+85 °C
Shock resistance   5000 g, 0.3 ms, ½ sine
Vibration resistance   50 g / 10–2000 Hz
Lid
Kovar lid（K）

Terminations (Option )
SnAgCu solder dipped pads (T3)

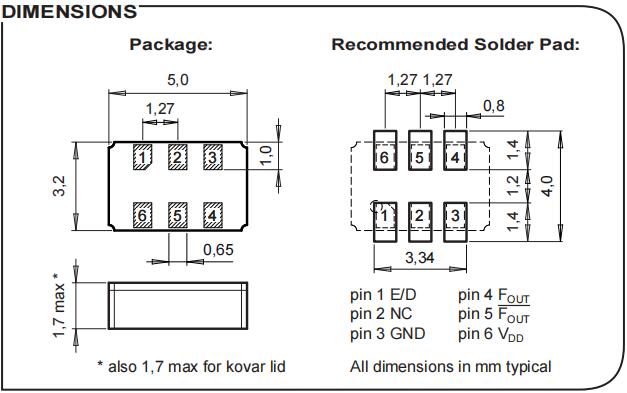

MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator尺寸圖
