首頁歐美晶振微晶晶振CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振

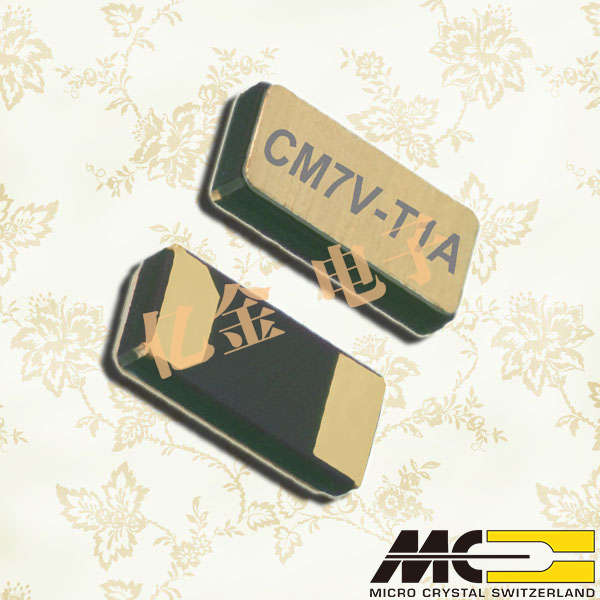

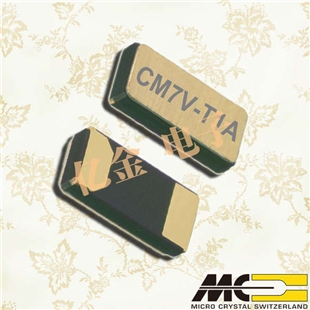

CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振

頻率：32.768KHz
尺寸：3.2×1.5mm
應　用： CM7V-T1A無源晶振,CM7V-T1A32.768kHz12.5pF±20ppmTBQA晶振,瑞士微晶晶振,3215mm晶振,32.768KHz晶振,負載12.5pf,工作溫度-40~125°C,頻率穩定性20ppm,具備AEC-Q200汽車資質,耐高溫晶振,無鉛環保晶振,汽車電子控制板晶...

CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振,CM7V-T1A無源晶振,CM7V-T1A32.768kHz12.5pF±20ppmTBQA晶振,瑞士微晶晶振,3215mm晶振,32.768KHz晶振,負載12.5pf,工作溫度-40~125°C,頻率穩定性20ppm,具備AEC-Q200汽車資質,耐高溫晶振,無鉛環保晶振,汽車電子控制板晶振,汽車音影系統晶振,醫療設備應用晶振,6G路由器晶振.
CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振特點：
卓越的密封與金-錫預制

高穩定性，低老化，密封保證

可擴展工作溫度范圍

體積小，外形低，重量輕(10.3毫克)

高抗沖擊和抗振動
100%不含鉛，符合rohs標準
具備AEC-Q200汽車資質

CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振規格表

標準頻率	FL	32.768	KHz
負載	CL	12.5	pF
頻率容差	ΔF/F	±20	ppm
串聯電阻最大值	RS	50/70	kΩ
儲存溫度	T_stg	−55~+125	°C
工作溫度	T_use	−40~+125	°C
最大驅動電平	P	1.0	μW
最小絕緣電阻	Ri	500	MΩ
老化第一年	ΔF/F	±3	ppm

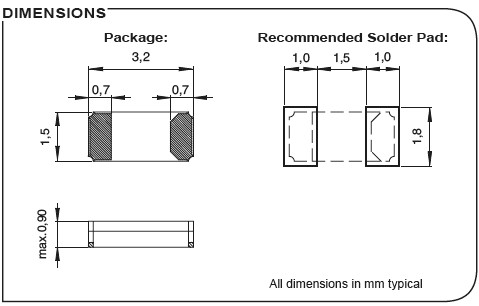

CM7V-T1A32.768kHz12.5pF±20ppmTBQA|6G路由器晶振|瑞士微晶晶振尺寸圖

制造商零件編號	制造商	描述	產品類型
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR	Crystals
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR	Crystals
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR	Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-7pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-7pF-100PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C	Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C	Crystals
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR	Crystals
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768k-7pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-9pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm	Crystals
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm	Crystals
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm	Crystals
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-9pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+125C	Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+125C	Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C	Crystals
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-10 PPM LOW ESR	Crystals
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF 100 PPM -40/+125C	Crystals
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR	Crystals
CM7V-T1A-32.768k-9pF-100PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-6pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
