CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振
- 頻率：32.768KHz
- 尺寸：3.2×1.5mm
- 應 用： 型號CC7V-T1A,編碼CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,是一個低頻SMT石英晶體單元,包含一個音叉石英晶體諧振器,它在帶有陶瓷蓋的密封陶瓷封裝中的真空下工作,尺寸3215mm,頻率32.768KHz,負載6pF,工作溫度-55~125°C,具...
-
-
.jpg)
CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振,型號CC7V-T1A,編碼CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,是一個低頻SMT石英晶體單元,包含一個音叉石英晶體諧振器,它在帶有陶瓷蓋的密封陶瓷封裝中的真空下工作,尺寸3215mm,頻率32.768KHz,負載6pF,工作溫度-55~125°C,具備AEC-Q200汽車資質,6G無線網絡晶振,物聯網晶振,汽車電子應用晶振,工業設備晶振.
CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振特點：
卓越的密封與金-錫預制
高穩定性，低老化，密封保證
可擴展工作溫度范圍
小尺寸，低輪廓，重量輕(12.5毫克)
高抗沖擊和抗振動
100%不含鉛，符合rohs標準
具備AEC-Q200汽車資質
CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振規格表
| 標準頻率 | FL | 32.768 | KHz |
| 負載 | CL | 12.5 | pF |
| 頻率容差 | ΔF/F | ±20 | ppm |
| 串聯電阻最大值 | RS | 50/70 | kΩ |
| 儲存溫度 | T_stg | −55~+125 | °C |
| 工作溫度 | T_use | −40~+125 | °C |
| 最大驅動電平 | P | 0.5 | μW |
| 最小絕緣電阻 |
Ri
|
500 |
MΩ
|
| 老化第一年 | ΔF/F | ±3 | ppm |
.jpg)

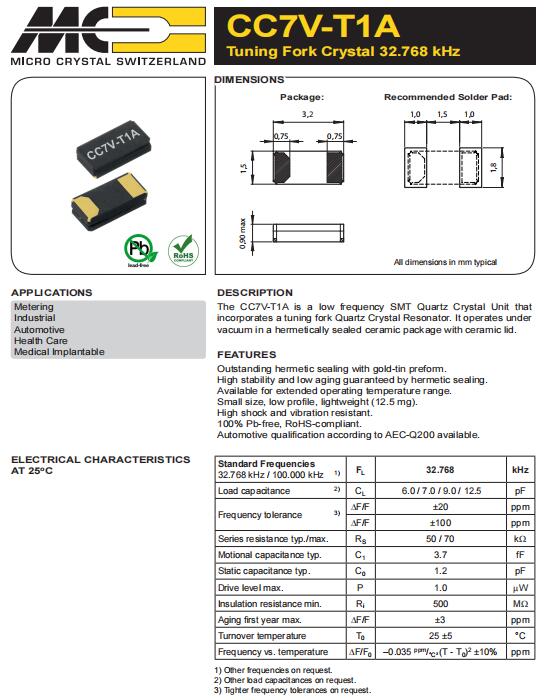

CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振尺寸圖
| 制造商零件編號 | 制造商 | 描述 | 產品類型 |
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm | Crystals |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm | Crystals |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm | Crystals |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals |
