首頁歐美晶振微晶晶振CC7A-T1A-26.000MHz-3.0pF-50ppm-TA-QI,6G以太網晶振,高頻貼片石英晶體

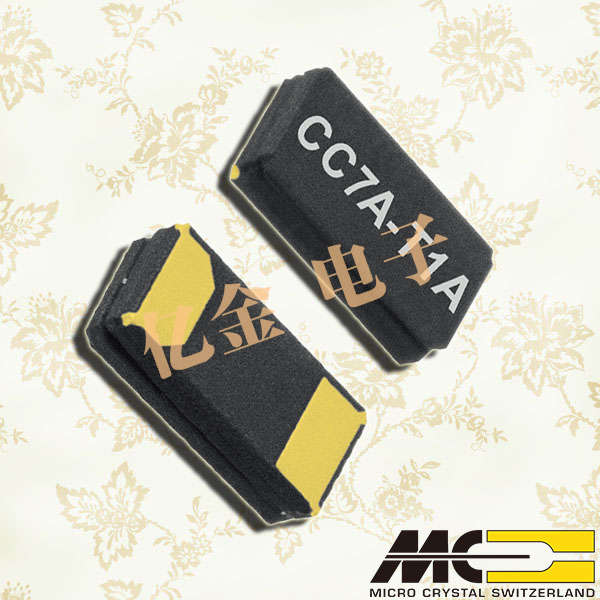

CC7A-T1A-26.000MHz-3.0pF-50ppm-TA-QI,6G以太網晶振,高頻貼片石英晶體

頻率：26MHz
尺寸：3.2×1.5mm
應　用： 瑞士微晶晶振,CC7A-T1A無源晶振,CC7A-T1A-26.000MHz-3.0pF-50ppm-TA-QI晶振,高頻貼片石英晶體,3215mm晶振,頻率26MHz,負載3pf,頻率穩定性50ppm,工作溫度-40~85°C,無鉛環保晶振,抗沖擊晶振,6G以太網晶振,遙感勘測晶振,...

CC7A-T1A-26.000MHz-3.0pF-50ppm-TA-QI,6G以太網晶振,高頻貼片石英晶體,瑞士微晶晶振,CC7A-T1A無源晶振,CC7A-T1A-26.000MHz-3.0pF-50ppm-TA-QI晶振,高頻貼片石英晶振,3215mm晶振,頻率26MHz,負載3pf,頻率穩定性50ppm,工作溫度-40~85°C,無鉛環保晶振,抗沖擊晶振,6G以太網晶振,遙感勘測晶振,光學網絡晶振,機載設備晶振.
CC7A-T1A-26.000MHz-3.0pF-50ppm-TA-QI,6G以太網晶振,高頻貼片石英晶體特點：
-金錫預制件的出色密封
-密封保證了高穩定性和低老化
-適用于擴展的工作溫度范圍
-小尺寸、低姿態、重量輕(典型4.1毫克)
-在基本模式下運行
-高抗沖擊和振動
-100%無鉛，符合RoHS標準

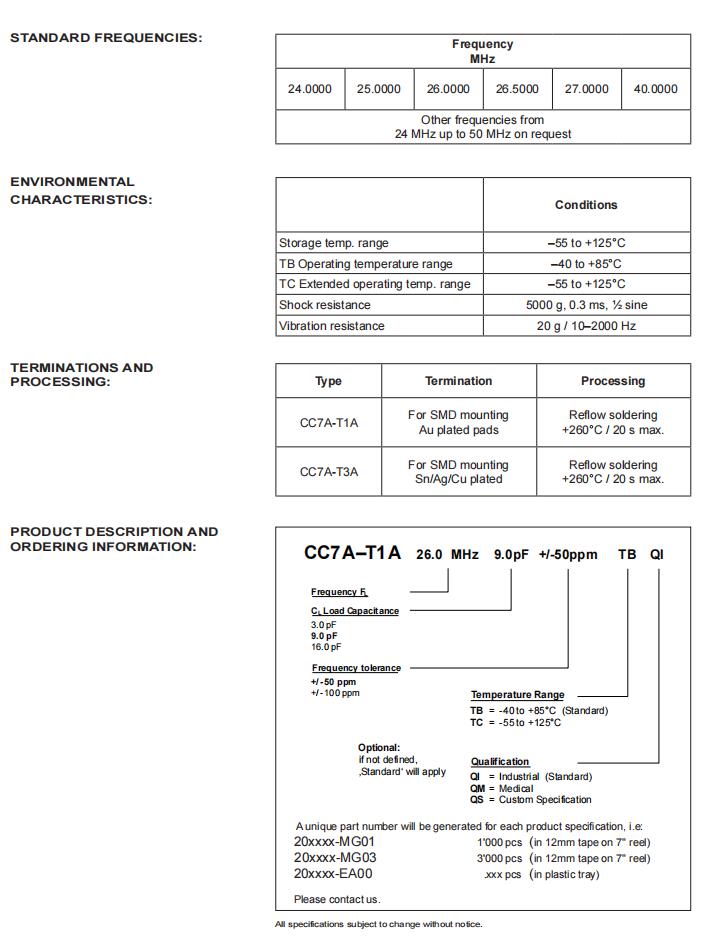

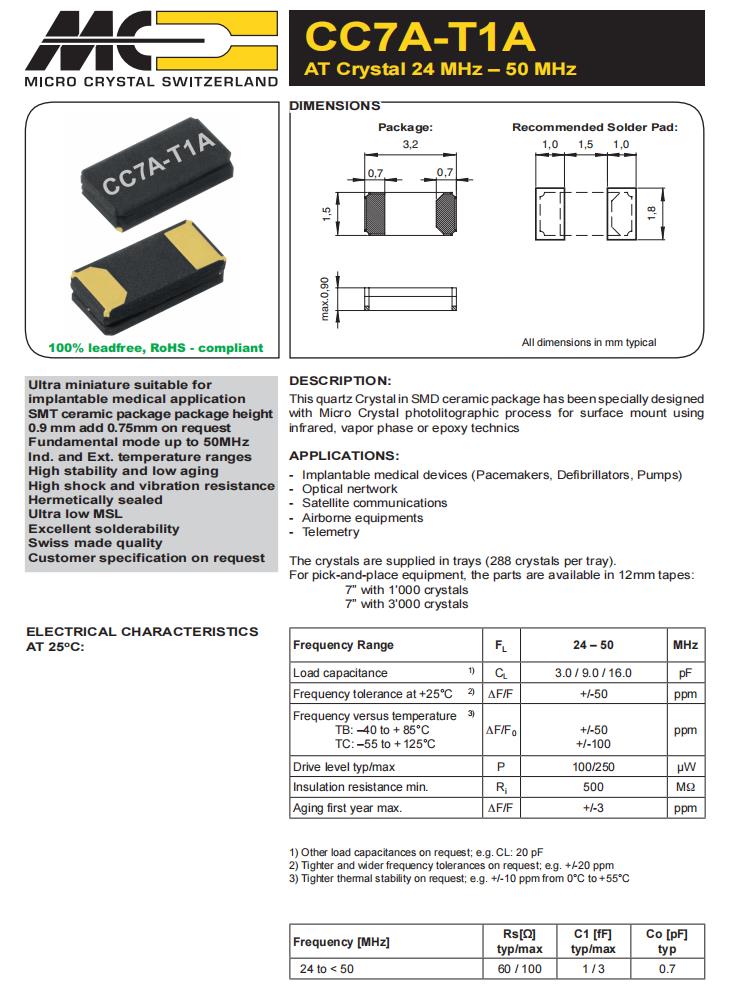

CC7A-T1A-26.000MHz-3.0pF-50ppm-TA-QI,6G以太網晶振,高頻貼片石英晶體規格表

標準頻率	FL	26	MHz
負載	CL	3	pF
頻率容差	ΔF/F	±50	ppm
頻率溫度穩定性	ΔF/F0	±50	ppm
儲存溫度	T_stg	−55~+125	°C
工作溫度	T_use	−40~+85	°C
驅動電平典型/最大	P	100/250	μW
最小絕緣電阻	Ri	500	MΩ
老化第一年	ΔF/F	±3	ppm

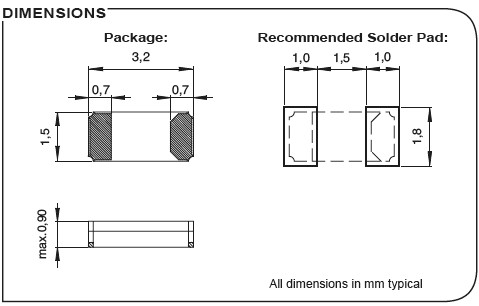

CC7A-T1A-26.000MHz-3.0pF-50ppm-TA-QI,6G以太網晶振,高頻貼片石英晶體尺寸圖

制造商零件編號	制造商	描述	產品類型
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
