格耶德國晶振,KXO-V97-kHz石英振蕩器,32.768KHZ有源晶振，小型SMD有源晶振,從最初超大體積到現在的7050mm,6035mm,5032mm,3225mm,2520mm體積,有著翻天覆地的改變,體積的變小也使產品帶來了更高的穩定性能,接縫密封石英晶體振蕩器,精度高,覆蓋頻率范圍寬的特點,SMD高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍:1.8V~5V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本W(wǎng)LAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
     GEYER晶振作為一個可靠的，成功的合作伙伴，我們非常重視在開發階段與客戶的密切合作。這使我們能夠確保我們能夠?yàn)槟峁┠胍暮托枰摹?

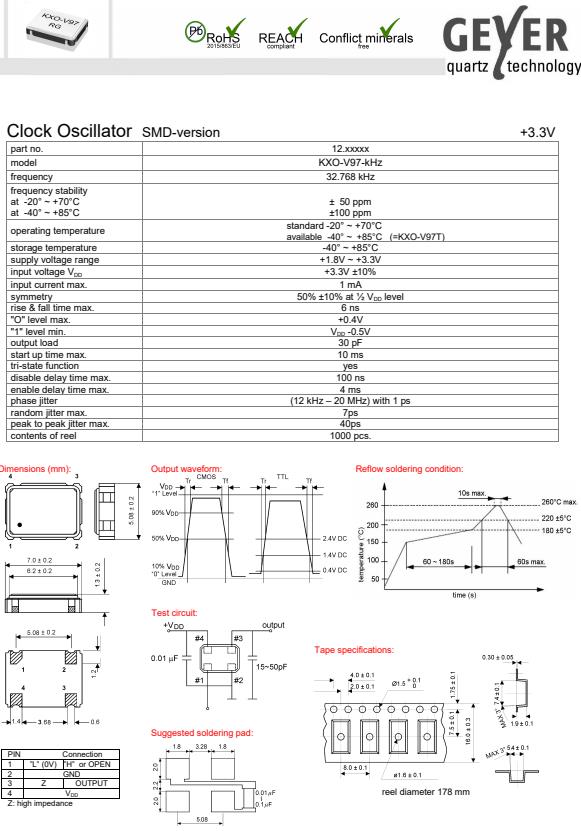

part no.	12.xxxxx

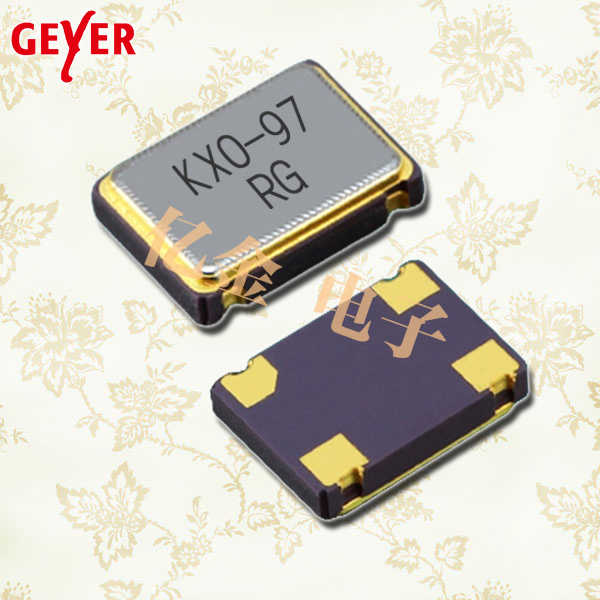

model	KXO-V97-kHz
frequency	32.768 kHz
frequency stability at -20 ~ +70°C at -40 ~ +85°C	± 50 ppm ±100 ppm
operating temperature	standard -20° ~ +70°C available -40° ~ +85°C (=KXO-V97T)
storage temperature	-40° ~ +85°C
supply voltage range	+1.8V ~ +3.3V
input voltage VDD	+3.3V ±10%
input current max.	1 mA
symmetry	50% ±10% at ½ VDD level
rise & fall time max.	6 ns
O level max.	+0.4V
1 level min.	VDD -0.5V
output load	30 pF
start up time max.	10 ms
tri-state function	yes
disable delay time max.	100 ns
enable delay time max.	4 ms
phase jitter	(12 kHz – 20 MHz) with 1 ps
random jitter max.	7ps
peak to peak jitter max.	40ps
contents of reel	1000 pcs.
