首頁歐美晶振12.94403晶振,KXO-V97T石英晶振,Geyer格耶進口晶振

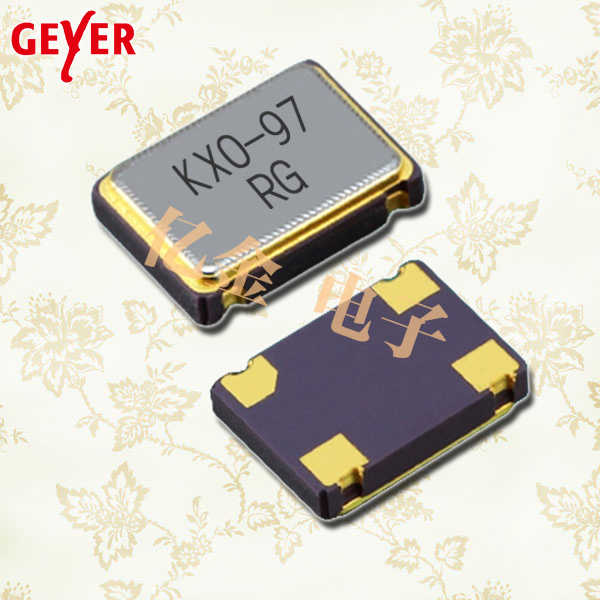

12.94403晶振,KXO-V97T石英晶振,Geyer格耶進口晶振

頻率：25.0000M
尺寸：7050mm
應　用： 12.94403晶振,KXO-V97T石英晶振,Geyer格耶進口晶振,具備-40℃~+85℃寬溫工作范圍,頻率穩定性達±100ppm可調,能從容應對高溫,低溫等極端工業環境下的頻率漂移問題.

12.94403晶振,KXO-V97T石英晶振,Geyer格耶進口晶振

12.94403晶振專為汽車電子場景設計的Geyer格耶電子晶振KXO-V97T晶振,具備卓越的耐候性與可靠性.通過AEC-Q200汽車電子元件認證,可耐受-40℃~+85℃寬溫循環,振動及濕度變化,頻率穩定性不受車載復雜環境影響,為車載導航,車身控制系統,車載通信模塊提供精準時鐘信號.采用抗沖擊封裝技術與防干擾電路設計,能有效抵御車載電源噪聲與電磁輻射,保障行車過程中電子系統的穩定運行.品牌在全球多地的生產基地與供應鏈體系,可提供長期穩定供貨保障,適配汽車電子長效使用與批量配套需求.

12.94403晶振,KXO-V97T石英晶振,Geyer格耶進口晶振

原廠型號 Originalmodel：	12.94403	品牌brand：	Geyer
Manufacturer品牌	Geyer	OperatingTemperature溫度	-40+85℃
Series型號	KXO-V97T	Current-Supply(Max)	-
Type類型	XO	PackageHeight高度	1.3mm
Frequency頻率	25M	Termination 腳位	4-pad
輸出方式 Output：	CMOS TTL	PackageType 封裝類型	4-sMD
Voltage-Supply電壓	3.3V晶振	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	100pp	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	7050mm	最小包裝數MPQ：	1000

12.94403晶振,KXO-V97T石英晶振,Geyer格耶進口晶振

12.94403晶振,KXO-V97T石英晶振,Geyer格耶進口晶振

12.87000	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87001	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	9 pF	± 20 ppm
12.87002	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	7 pF	± 20 ppm
12.87034	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	4 pF	± 20 ppm
12.87080	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87081	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 20 ppm
12.87083	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 20 ppm
12.87086	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 10 ppm
12.87090	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 10 ppm
12.87095	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 10 ppm
12.87105	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 10 ppm
12.87107	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87109	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12 pF	± 15 ppm
12.87110	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87111	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87112	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87113	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87114	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87115	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87116	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87118	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 20 ppm
12.87119	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 20 ppm
12.87120	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87121	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87123	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 30 ppm
12.87126	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87127	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 30 ppm
12.87128	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 20 ppm
12.87129	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87130	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87131	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87132	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 20 ppm
12.87133	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87134	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 10 ppm
12.87135	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 20 ppm
12.87136	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87137	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	9 pF	± 20 ppm
12.87138	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87139	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 10 ppm
12.87143	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 20 ppm
12.87144	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 5.0 ppm
12.87145	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87146	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 10 ppm
12.87147	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 10 ppm
12.87148	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 20 ppm
12.87149	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 20 ppm
12.87150	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87151	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 30 ppm
12.87152	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87153	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 20 ppm
12.87155	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87157	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87158	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87159	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87160	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87161	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87163	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	7 pF	± 20 ppm
12.87164	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF	± 30 ppm
12.87165	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF	± 20 ppm
12.87166	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 20 ppm
